Integrated functions
Thermal insulation, sound absorption and an exposed finish work together to address multiple design objectives.
K-13 · THERMAL & ACOUSTIC FINISH
Architecture expressed.
Comfort considered.
K-13 spray-applied cellulose brings thermal insulation, sound absorption and a natural textured finish together. Material solutions for exposed ceilings and complex roof forms.
HONG KONG · MACAU · GREATER BAY AREACommon Bond Bistro · Light Gray K-13
SOURCE: ICC · INTERNATIONAL APPLICATION
SOURCE: ICC · INTERNATIONAL APPLICATION
Material selection and application support
for architects, designers and project teams
Thermal controlTHERMAL
Sound absorptionACOUSTIC
Natural finishTEXTURE
01 / BUILDING SOLUTIONS
Start with the space.
Consider acoustics, thermal requirements and architectural expression within one material solution.
01An open space. A difficult conversation?
The fibres of K-13 absorb sound energy, helping reduce reflections and reverberation. Thickness and coverage should be selected for the acoustic goals of restaurants, offices and public spaces.

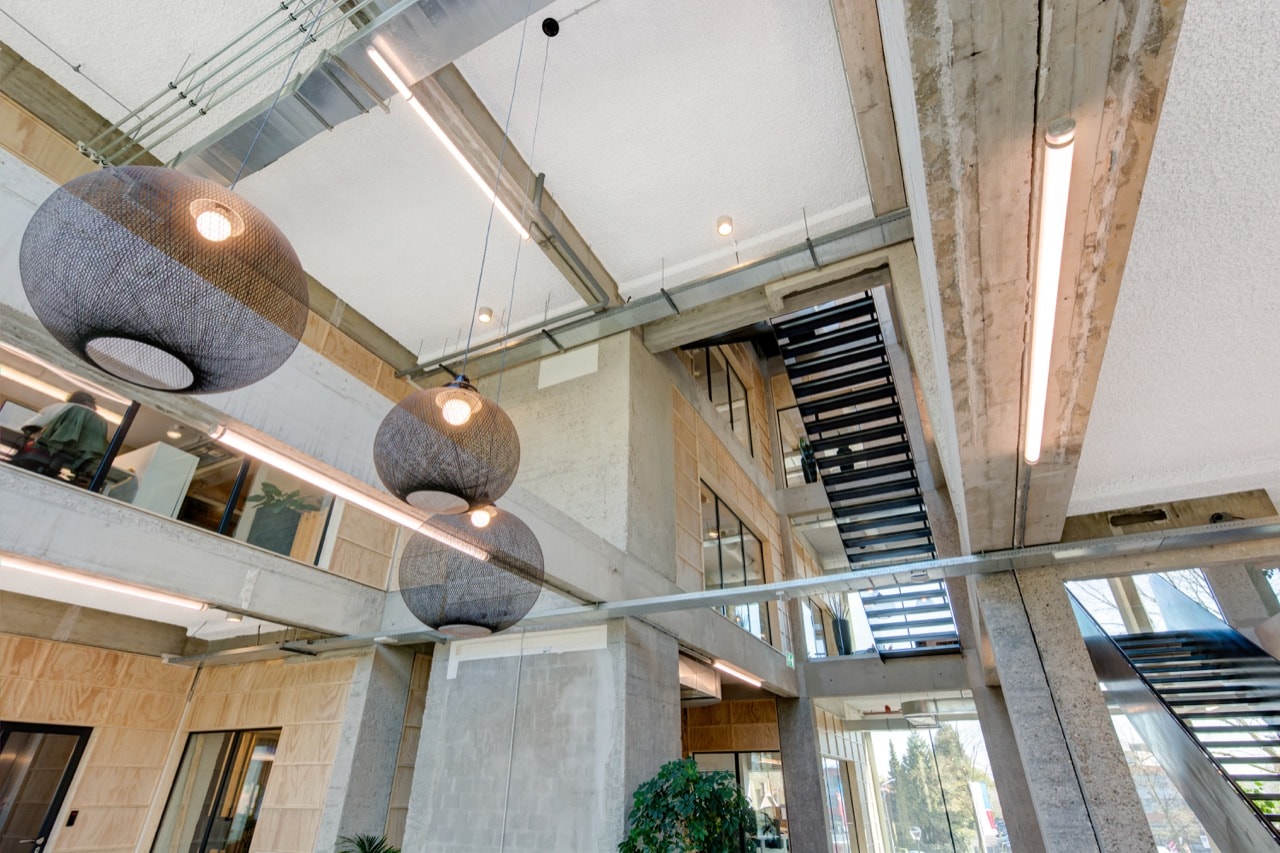

02Exposed structure, better acoustics?
K-13 can serve as an exposed acoustic ceiling finish while keeping the structure visible. Coordinate colour and details with beams, decking and building services.
03A continuous finish for complex ceilings?
Spray application follows suitably prepared substrates and complex ceiling forms, creating a continuous fibrous finish. Substrate preparation, service interfaces and edge details still need design coordination.
04Thermal performance for metal roofs?
K-13 adds thermal resistance to roof assemblies. Design around the required R-value, deck profile, thickness and support system, with condensation assessment and roofing manufacturer coordination.
02 / SPACES & APPLICATIONS
Performance, within the design.
Explore how material, texture and colour become part of the architectural experience.
An open setting for conversation

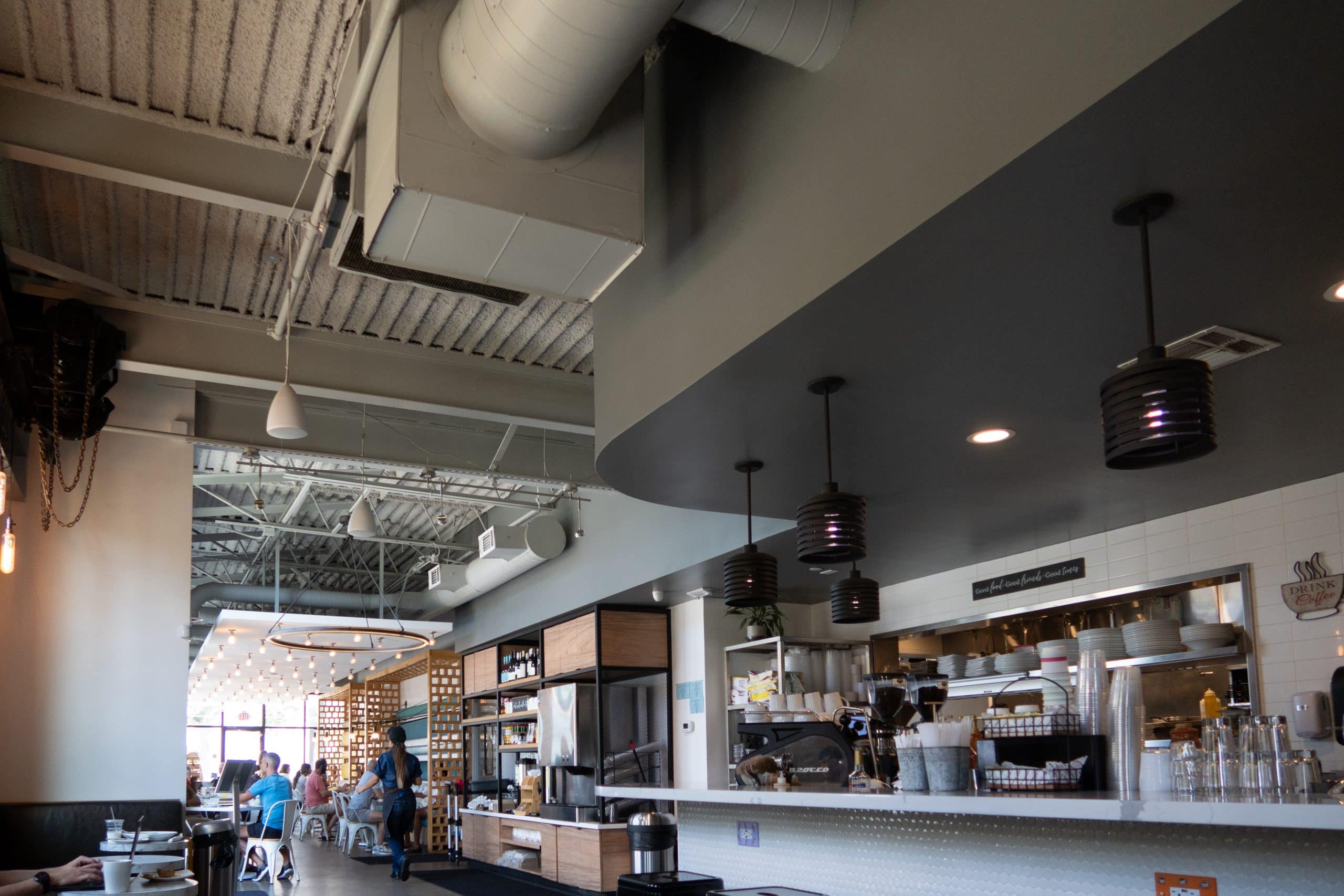

Common Bond Bistro · Light Gray K-13
A ceiling that belongs to the space

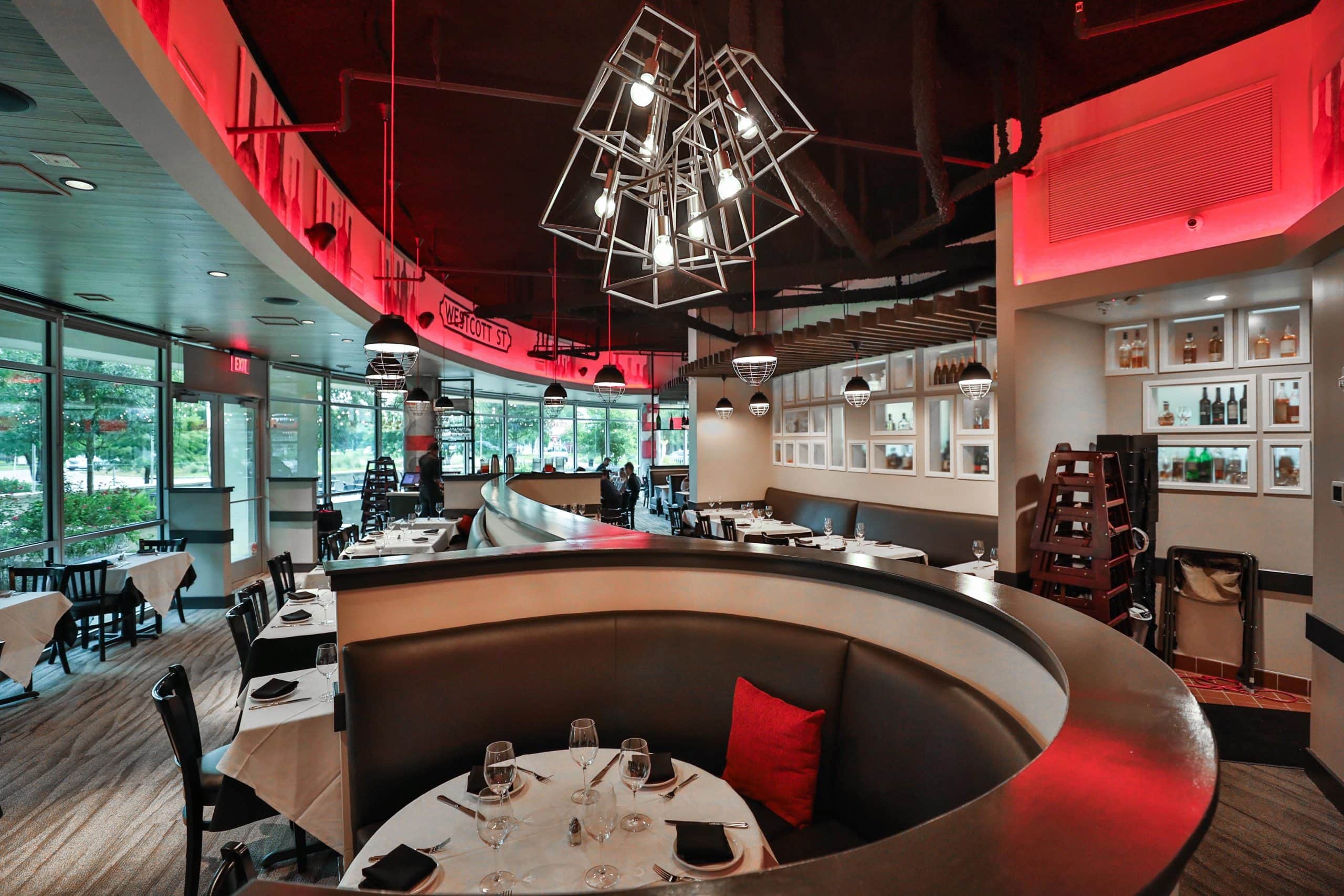

Union Kitchen · Black K-13
ICC international application references; not projects delivered by Yuanben. Project imagery: International Cellulose Corporation.
03 / THE MATERIAL
K-13®
A spray-applied cellulose material manufactured by ICC in the USA. A proprietary water-based adhesive binds the fibres into an exposed thermal and acoustic finish, with standard and custom colours.
On-screen colour references only. Confirm colour and texture with a physical sample. Selected: White
Natural texture.
Integrated performance.
FunctionsThermal · Acoustic · Exposed finish
Sound absorptionASTM C 423 / NRC
Thermal testingASTM C 518 / R-value
AppearanceNatural fibres · Standard & custom colours
Performance varies with thickness, substrate and assembly. Sound isolation must be assessed using complete assembly test reports; NRC is not a sound isolation rating.
View K-13 technical information04 / INTEGRATED VALUE
More requirements.
One considered material choice.
Evaluate value through the contribution to the complete building solution.
Simpler assemblies
In suitable designs, reduce the need for separate finishes or portions of suspended ceiling construction.
Whole-project value
Consider target performance, supporting construction and installation conditions when comparing complete solutions.
05 / ABOUT YUANBEN
Two decades of focus.
From material to application.
Yuanben has worked in environmental and functional building materials since 1999 and began promoting ICC K-13 in 2006. Our experience spans hundreds of projects across mainland China, including buildings, shops, bars, factories, tunnels and villas. We provide ongoing technical support through material selection, detail coordination, installation planning and site quality management.
1999Building materials expertise
2006K-13 promotion begins
2013Authorised ICC service provider
